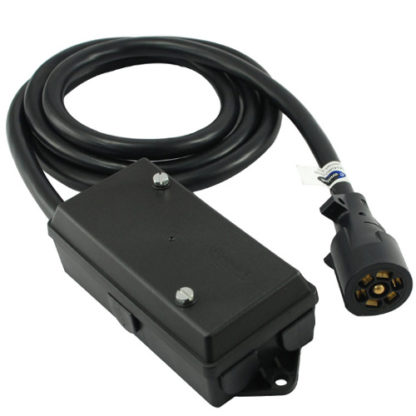

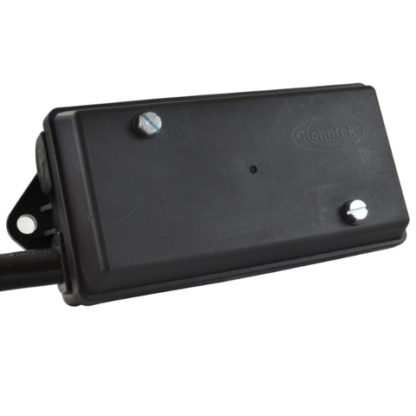

These pre-wired junction boxes feature a molded 7-way plug and easily connect to an existing trailer wiring system. Made of impact resistant PVC, these junction boxes are guaranteed to last harsh road conditions. Each kit includes all of the plastic hardware and sealing grommets needed. There are several different cable length options to choose from, making it easy to find the right one.
The diagrams below are instructions on how to wire a vehicle for towing using these junction boxes. Some manufactures use a different wire setup than listed below. Check for wiring compatibility with this product and use a test light/volt meter to verify before using.
Warning: It is recommended to check with the manufacturer or dealership for vehicle specific information before starting. READ all instructions carefully before attempting to wire a vehicle using these products. Follow the instructions above. Improperly wiring to the trailer/vehicle may cause electrical malfunction or other damage, which could result in property damage, personal injury or even death. CordDepot is not responsible for any damages caused by incorrect wiring.
